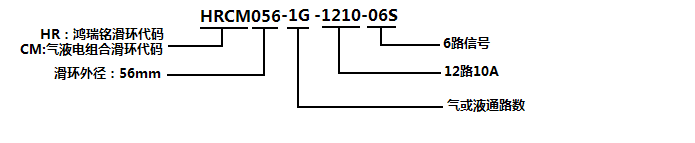

電氣性能 Electrical Spec.

額定電壓 Rating voltage

380VAC

額定電流 Rating current

信號或5A/路,10A/路   Signal or 5A /Ring,10A /Ring

絕緣電阻Insulation resistance

1000MΩ@500VDC

耐壓 Dielectric strength

600VDC@50HZ

電氣噪音 Electrical noise

10mΩ@6VDC,50mA,5Rpm

旋轉接頭性能  Specification for Rotary Joint

通路  Circuit

1-8通路  1-8way

介質類型  Media Types

冷卻液,氣,油,蒸汽,水  coolant liquid，gas,oil,vapour,water

壓力 Pressure

0~50MP

管子尺寸 Passage size

2mm~15mm

環境性能 Environment

工作溫度 Working temperature

-40℃~+80℃

環境濕度 Humidity

10% to 90% RH

環保認證 Materials

Lead Free,RoHS compliant

CE Certified

YES

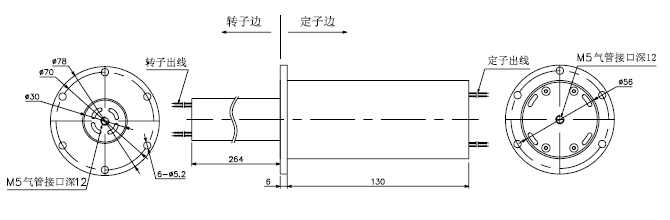

安裝導電環 Slip ring installation

  如圖所示：將導電環裝在傳動軸需要的位置，用轉子上四個

緊定螺絲固定。定子部分通過止轉片與設備固定部位連接。

   As shown on the right picture，position the slip ring in the

 desired location and tighten it to the shaft by four set screws.

  Anti-Rotation tap is used for connecting the stator of slip

 ring with the stationary member of euipment.

 注意事項 CAUTION:

 因?yàn)榛h(huán)和客戶具體應用之間可能存在機械誤差，不推薦在

滑環兩頭強行緊固安裝，否則可能導致過早損傷滑環。

 If possible geometric mismatching between the customer's

application and the slip ring,'hard mouting'of both ends of the slip ring is not recommended and may cause premature failure.

  把導線排好并做必要的連接，防止導線妨礙滑環的自由旋轉。

  Route the wiring and make the neccessary connections.Do not allow the wiring to restrict free rotation of the slip ring.

      ◆ 導線長度

      ◆ 可選法蘭安裝

      ◆ 可指定出線方式

      ◆ 可選接頭類型

      ◆ 防護等級：IP65,IP68 可選

      ◆ 屏蔽電纜

     ◆ 信號，同軸電纜，功率線混合

    ◆ 熱電偶信號混合

        ◆ 傳輸頻率可達500MHz

        ◆ 可混合高速率數據傳輸（以太網傳輸,USB,Profibus）

       ◆ 軍工級別
